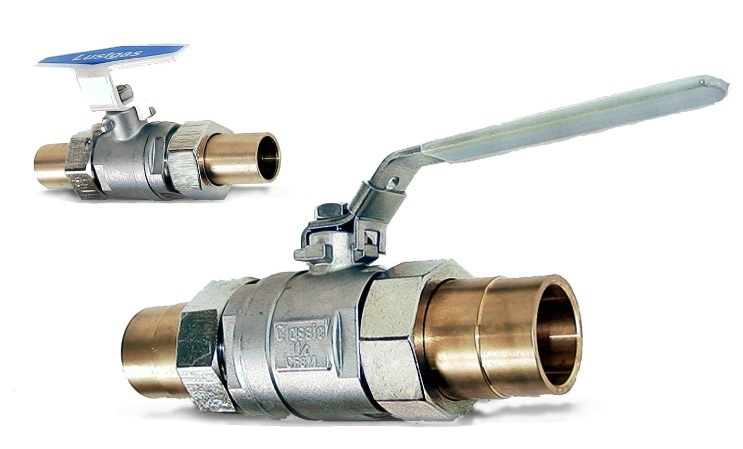

Ball valve Classic

Classic ball valve is the market''s hottest medicine valve, specially designed for medical gases. The valve is used for shutdown on trunk lines, in shaft, corridors and in treatment rooms.
The valve is supplied degreased according to national standard SIS HB 370, as well as applicable standard EN ISO 7396-1. Performance Guarantee Better Than Ra <0.8. The valve is CE marked.
Pressure class PN 64.

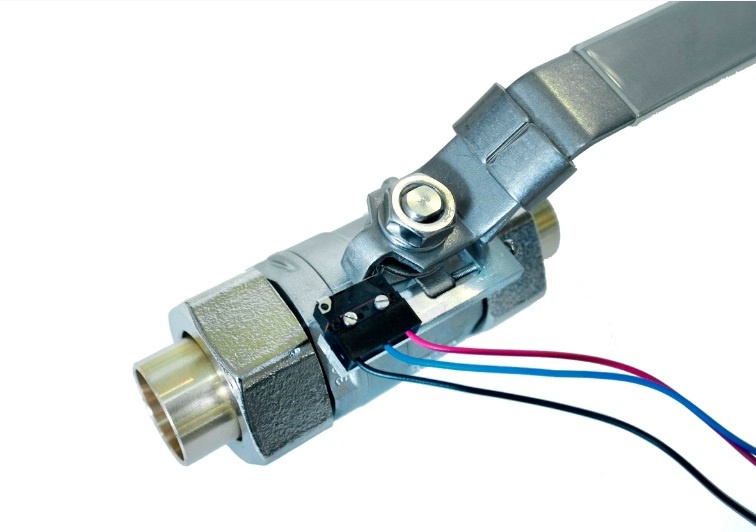

Optionally, the valve can be equipped with limit switches, stainless steel orbital ends, see picture and our product sheet.

XX indicates dimension

Artikelnr: QMT 7611XX0
