Ball valve Orbit

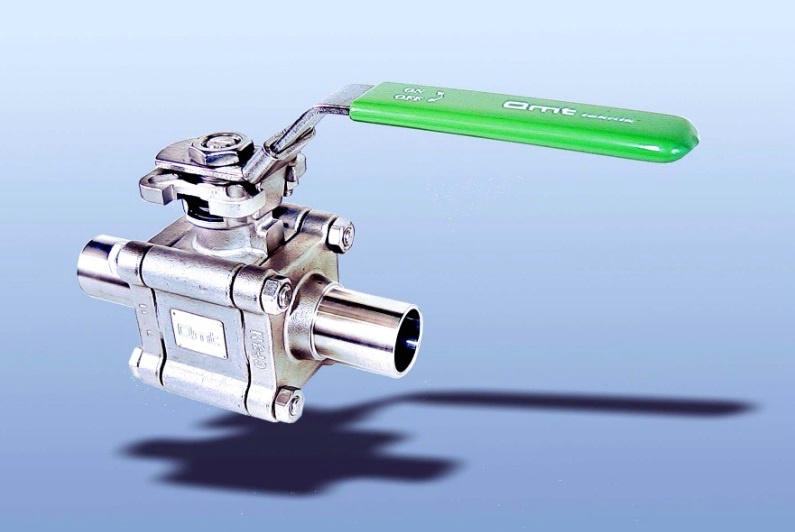

ORBIT is a stainless steel ball valve, made for orbital welding into pipes without being divided. This high-quality valve is used for gases and liquids, where the demands on cleanliness and density are particularly high.

With dimensions below 12 mm, the valve is delivered with reducing ends, with smooth transitions. Common to all dimensions is that the smallest pipe dimension is contained throughout the valve. Media-rendered surfaces are delivered as standard with surface fineness class NP (Ra <1.0), but can also be delivered with LP grade (Ra <0.4) or elpolished (Ra <0.2) design. Pressure class PN 64, but can be obtained from other pressure classes and with other sealing materials. The valve is four safes tested according to API 607.

Replace X in the article number with dimension and N for NP, L for LP and E for elpolished execution

Artikelnr: QMT 7650XX0X
