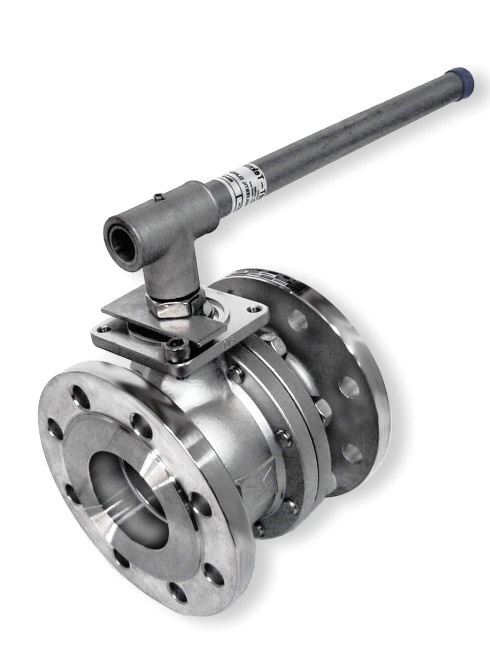

Ball valve Classic RF

The Classic RF ball valve is specially designed for medical gases. The valve is used for shutdown on mains and in shaft. Classic RF delivers degreased and meets the requirements of the national standard SIS HB 370 and the current standard, EN ISO 7396-1.

Performance Guarantee Better Than Ra <1.0. Connection to the valve flanges. Front flanges are supplied as an accessory. Made with flange joint PN16 and with lockable handle. The valve has plate-spun spindle seals in PTFE and is "four safe" tested according to API 607.

Cooling valve Classic RF is available in dimensions DN 65, DN80 and DN100.
The valve is CE marked.

Artikelnr: QMT 7613XX
