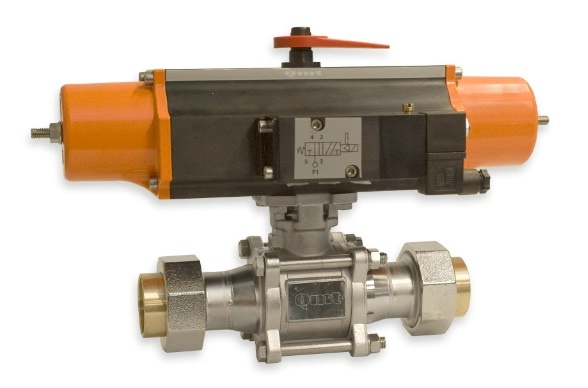

Motor controlled valve OrbitXC

The motor controlled valve ORBIT XC is a stainless steel ball valve with a pneumatic engine control unit, made for soldering into pipe systems. This high-quality valve is used for medical gases where the demands on cleanliness and tightness are particularly high.

Media-rendered surfaces are delivered as standard with a surface fineness class NP (Ra 1.0) but can also be delivered with LP grade (Ra <0.4) or elpolished (Ra <0.2) design. The valve holds pressure class PN64 but is available in different pressure classes and with other sealing materials. ORBIT XC is four safes tested according to API 607.

Qmt-tech Motorized Valve ORBIT XC is prepared for brazing. The valve is degreased, non-reducing, and holds surface finish class NP (Ra 1.0).

Artikelnr: QMT 7660XX0MYZ
