Switch-over station TC150

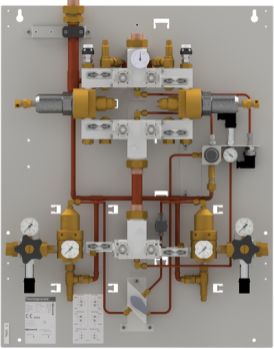

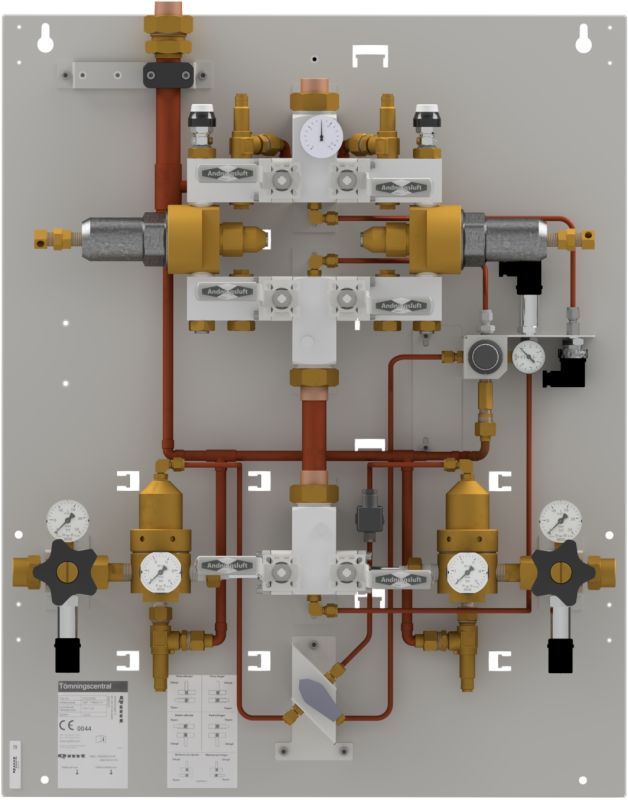

The TC-150 is a one-stage central for emptying and automatic replacement of medical gas. The center consists of a metal mounting plate, two high pressure valves with metallic seal, two high pressure regulators and lever for manual selection of primary emptying side.

The central system has been designed to ensure gas supply also in connection with necessary maintenance. Each pressure regulator can be switched off (with ball valves) separately. This allows the central system to function partially and thus ensures continuous drainage. The central is intended for use with medical gases.

Two sources of supply
With the center you can manage two sources of supply, a primary and a secondary. When the primary page is emptied, a change is made to the secondary page (which will be the new primary page). A signal is given to the alarm system for indicating the operating page.

Central for emptying of medical gas, compressed or in liquid form, in medical gas distribution facilities in accordance with the European Standard EN ISO 7396-1 and SIS HB 370. Medium pressure and outlet pressures are protected by safety valves according to the above standards.

Art nr                                    Descripition
QMT 7T15001-1X              Emptying central TC-150 Breath oxygen
QMT 7T15001-3X              Emptying central TC-150 Breath air

X indicates equipment options Standard: Pressure sensor (T) Optional: Signal Manometer (S), Micro Switch (M)

Artikelnr: QMT 7T15001-XX
