Regulatorunit

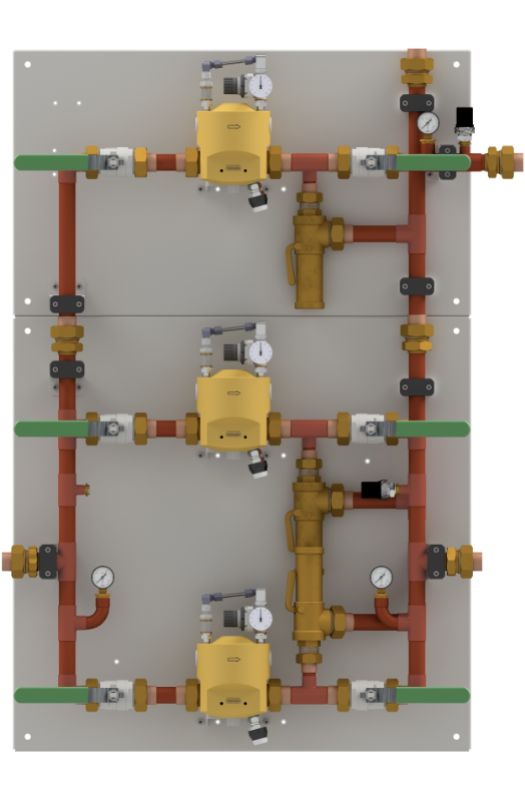

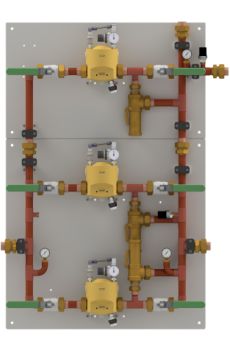

Qmt-techs Regulator Unit is supplied for the control of nominal supply pressure (compressor / drainage pressure) to nominal distribution pressure (operating pressure).
The regulator unit is equipped with dual operating air ducts, where one side is backup for the operating side, as well as an instrument air service page. The product is CE marked.

Capacity

Dim 28 - 255 m³ / h (at 10 bar in and 5 bar out)
Dim 28 - 350 m³ / h (at 13 bar in and 11 bar out)
Dim 35 - 300 m³ / h (at 10 bar in and 5 bar out)
Dim 35 - 350 m³ / h (at 13 bar in and 11 bar out)
Dim 42 - 625 m³ / h (at 10 bar in and 5 bar out)
Dim 42 - 1145 m³ / h (at 13 bar in and 11 bar out)
Dim 54 - 1070 m³ / h (at 10 bar in and 5 bar out)
Dim 54 - 1800 m³ / h (at 13 bar in and 11 bar out)

Outer dimensions (mm)

Dim 28/35 773x1183 (WxH)
Dim 42/54 1170x1715 (WxH)

XX indicates dimension

Artikelnr: QMT 776 10 XX
