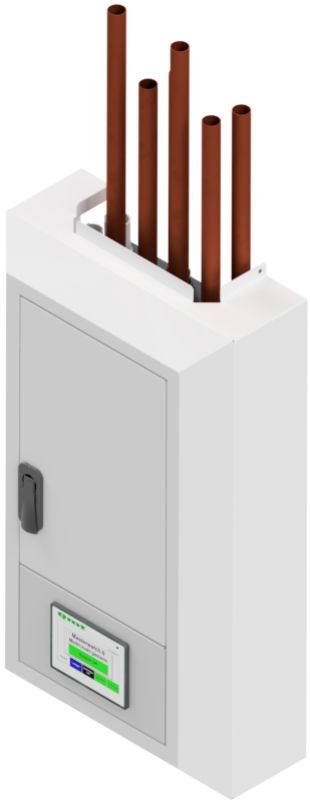

Pressure Monitor MULTI 2

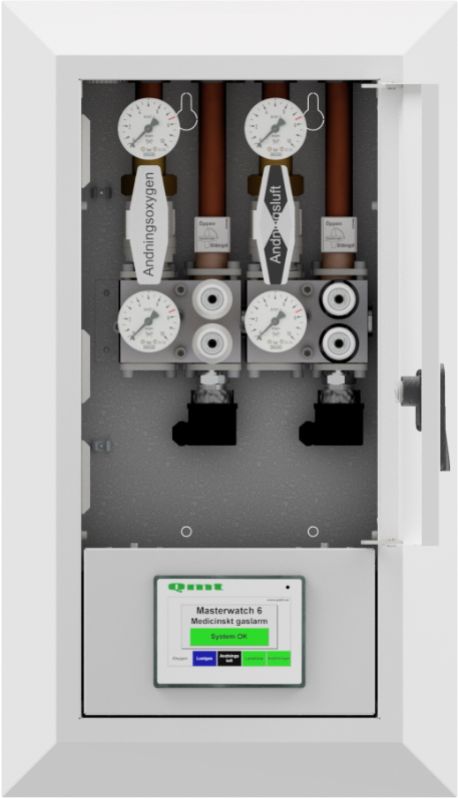

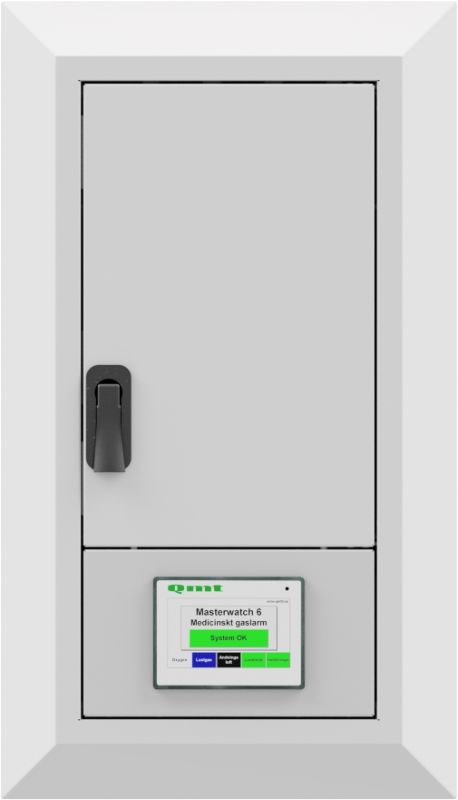

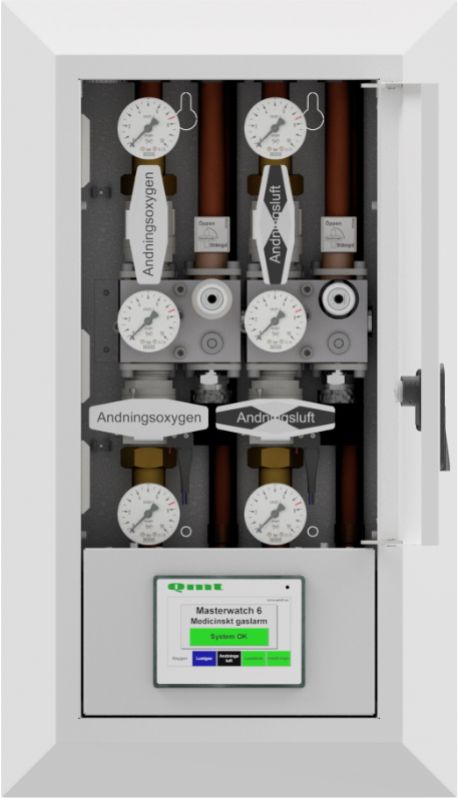

Qmt-tech''s compact pressure monitor MULTI 2 in a new design. The unit is used to monitor pressure levels in medical gas systems and provide .connection point and/or permanent reserv gas supply. Pressure monitor MULTI 2 are usually placed in the corridor of the department it supplies. The unit is delivered as standard with a connection of 22 mm. MULTI 2 is available in versions from two to five gases, for recessed or surface mounting. The product has pressure gauge on the inlet and outlet and is equipped with the stainless steel ball valve Classic. The system pressure can be read on the pressure gauge or via a connected alarm system. Each gas type has a medical gas outlet for high flow reserve gas supply. Single reserve gas outlet is standard, double reserve gas outlets are optional. The unit can be equipped with a connection to permanently connected reserv gas supply system. MULTI 2 can be delivered with a microswitch on the reserve gas supply valve (optional). For standard alarms connected to the unit, the following functions apply: Reading of all gases, 4 relay outputs, 1 Modbus RS485, 1 modbus TCP/IP, monitoring of UPS and slave alarm unit or indicator tableau. See also separate document for alarms. Device without alarm unit is not standard. The product complies with the European standard EN ISO 7396-1 and the national standard SIS HB 370. The connection pipes are plugged on delivery to meet the cleanliness requirements.

Artikelnr: QMT 8XXXXXXXXXXXXXXX
