Manifold and Bottle ramp

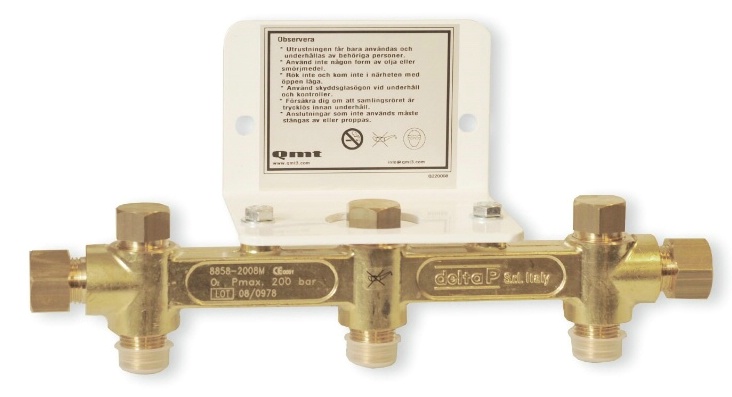

Distribution tube manifold for high pressure medical gas is usually used in central gas distribution systems according to the standard EN ISO 7396-1.
Manifold is used as a collector to collect the gas from multiple gas bottles and direct it to a primary reduction part through a high capacity helical coil. Inlet connections are equipped with check valves.

All connections are gas-specific in accordance with EN ISO 7396-1.

Article number Manifold: QMT788XX-2008M XX indicates gas port

Bottle Ramp
Bottle disaster for one to four bottles is available as an accessory for Manifold, for 20L and 50L bottles.

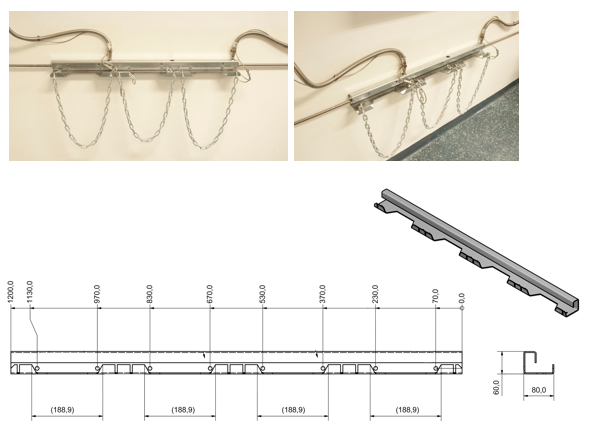

Dimensions for ramp 1-4 bottles

Article number Bottle ramp: QMT 785011X X indicates number of bottles

Article number Manifold: QMT788XX-2008M XX indicates gas port

Artikelnr: QMT788XX-2008M
