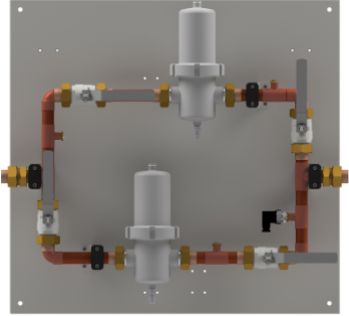

Filter Unit double

Qmt Double Filter Unit for 1 μm Filtering Medical Gases. Double filter unit is equipped with 4 stainless steel ball valves QMT-Classic (internal surface protection Ra <0.8 mm) for easy filter change, gas outlet and pressure sensor. The filter package is intended for surface mounting.

Flow at 7 bar g pressure.
DN 15 120 m³ / h
DN 22 180 m³ / h
DN 28 270 m³ / h
DN 42 480 m³ / h
DN 54 720 m³ / h

XX indicates the connection diameter and the gas port

Artikelnr: QMT 7FU02-XX-X-X
