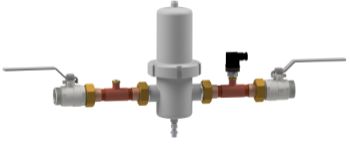

Filter Unit

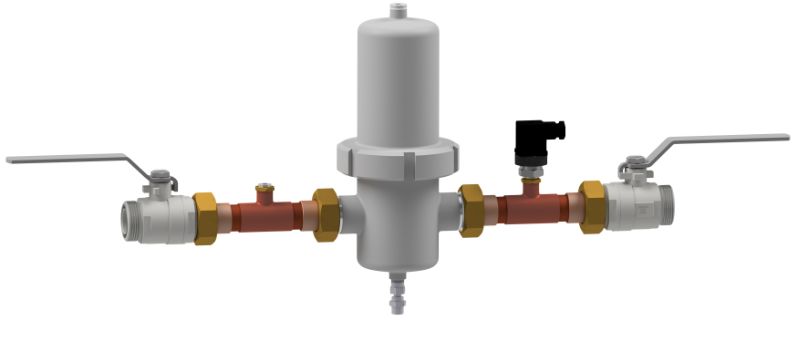

Qmt Filter Unit for 1 μm Filtering Medical Gases. Filter unit is equipped with 2 stainless steel ball valves QMT-Classic (Internal Surface Protection Ra <0.8 mm) for easy filter change, gas outlet and pressure sensor. The filter package is intended for surface mounting.

Flow att 7 bar g pressure
DN 15 120 m³ / h
DN 22 180 m³ / h
DN 28 270 m³ / h
DN 42 480 m³ / h
DN 54 720 m³ / h

XX indicates the connection diameter, gas type and langauge

Artikelnr: QMT 7FU01-XX-X-X
