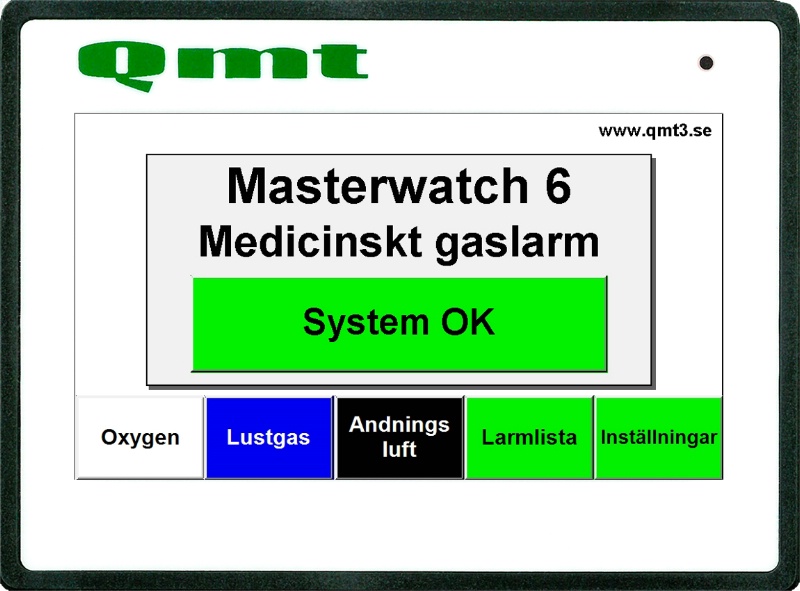

Masterwatch 6 TRO

The alarm system Masterwatch 6 TRÖ is a modern system adapted for medical gas systems.

Each alarm unit is integrated into the pressure monitor / pressure switch and retrieves information from the pressure sensors or signal sensors mounted in the pressure monitor / pressure monitor they monitor and generate alarms in case of malfunction. Reservoir gas valves can be monitored via microswitches.

Masterwatch 6 TRÖ can communicate with parent systems via modbus TCP / IP and modbus RS485. For easier communication, there are also 3 relay outputs and one relay output for the call. These can be adjusted via the panel what these should alarm for and whether it should be NO or NC function. If the alarm is powered by Qmt ups, this is also monitored by the alarm system.

There is the possibility of call forwarding via the Qmt keypad, slave panel, external light / flashlight and external buzzer.

Artikelnr: QMT70TRO600
